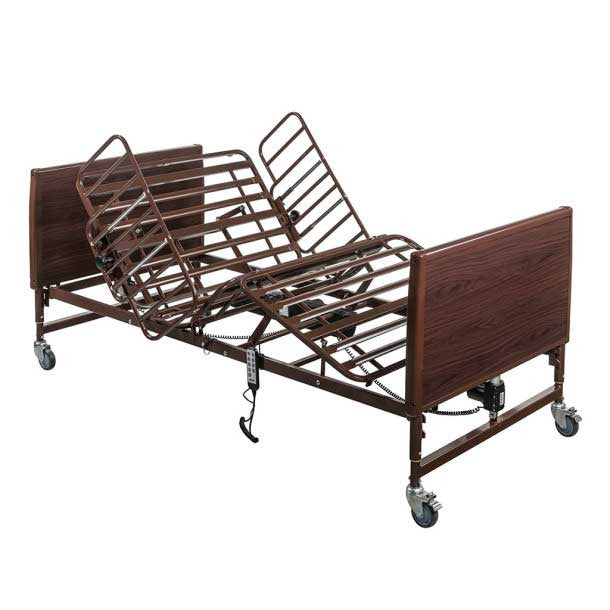

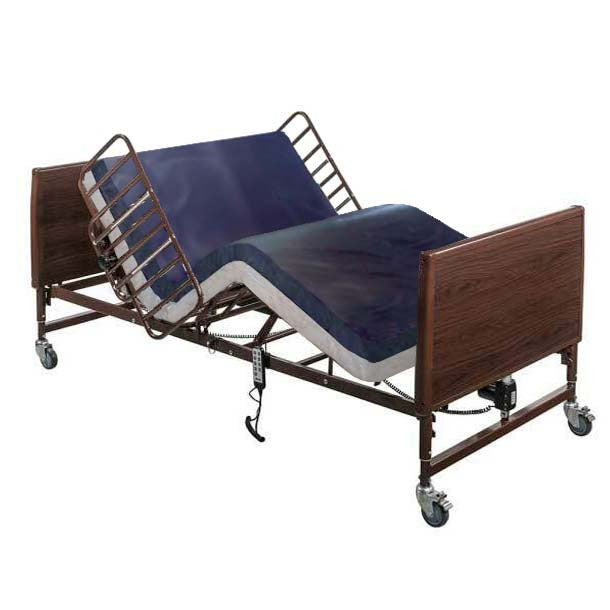

Drive Lightweight Bariatric Bed 48" Width with Weight Capacity 750 lbs

Drive Medical's Full Size Bariatric 48" wide bed (48"W x 80"L) 15302LW offers quiet and smooth operation in a heavy-duty frame with a weight capacity of up to 750 lbs. This bariatric bed is available as Bed Only, or Save on Mattress Option Packages with Drive's 7"H Bariatric Foam Mattress (15310), or the optional Protekt Aire 8000 (item# 80080) Alternating Pressure Mattress to treat and/or prevent Stage 1 through 4 pressure sores.

Need a different size? Click to see the >> 42"W Drive 15300LW or 54"W 15404LW models

See all features & specification below or Click to shop >> all Beds for Users Weighing 400+ lbs

Click to watch the demonstration Video on this page

Shipping/Delivery*

This item is In Stock. Drive Medical orders generally ship 1 to 2 days from order date if placed by 12:00 PM EDT / 11:00AM CDT, Mon-Fri. Freight transit time is generally 3 to 5 business days. Curbside Delivery orders are delivered to your door, but not brought inside or removed from the box. The freight company will call you to arrange for a convenient delivery date and time. Bed Setup and Bed Setup & Move Existing Bed options may add 3 to 5 days to your expected delivery time. *While the bulk of shipping costs are covered, a $40 lift gate fee will be added during checkout under the line item "Shipping Exception." Note: If your delivery will be made to a Freight Dock, please notify NewLeaf via the "Order Comments" field during checkout, and a $40 credit will be applied to your payment method. You must notify NewLeaf within 2 hours of order placement to qualify for this credit.

Bed Features | Drive 15302LW 48"W Bed

• Whisper-Quiet Performance – Designed for a peaceful sleep environment, ensuring minimal noise during adjustments.
• Heavy-Duty Steel Frame – Built for strength and patient safety, offering superior durability and support.

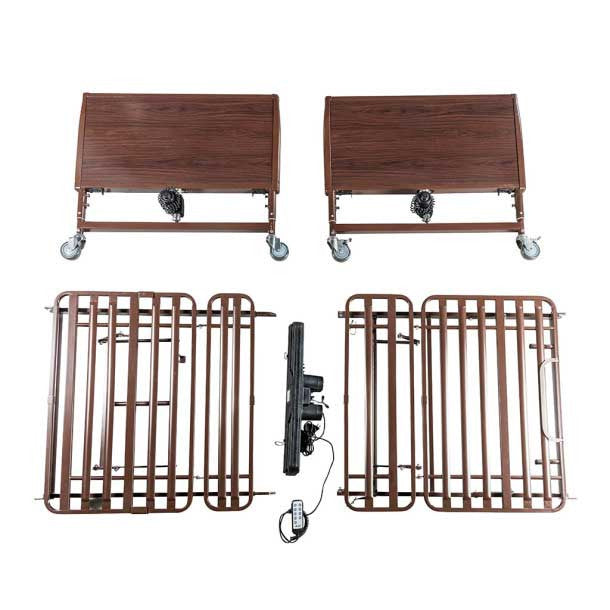

• Ultra Lightweight & Tool-Free Setup – Easily assembled by one person, requiring no tools or link connections.
• Enhanced Mobility with 5" Casters – Includes two locking and two non-locking wheels for easy movement and secure positioning.
• Durable Slat Deck – The square tube, all-steel frame provides long-lasting durability and support.
• Scratch-Resistant Wood Grain Panel Ends – Adds a touch of elegance while allowing for adjustable overall frame height with built-in hi-lo motors.
• Spacious 54" Sleep Surface – Wider than conventional hospital beds, offering additional comfort and flexibility.
• Glow-in-the-Dark Hand Control – Easily adjust bed positions at night with the included illuminated remote.
• Emergency Manual Crank – Ensures continued operation in power outages for added reliability.
• Optional Backup Battery – Compatible with model 15302LWB, providing extra peace of mind.
• Half Rails Available – Pair with 15021BV-LW for additional patient safety and support.
• Industry-Leading Warranty – Limited Lifetime on the frame and welds, 5 years on the motor and hand control, and 1 year on all other parts and components.

Specifications

Click to download >> Drive Lightweight 15302LW User Manual

Mattress Package Options

Protekt 600 Bariatric Pressure Redistribution Foam Mattress, 48" x 80", item# 81065

• Click to review the Protekt 600 Bariatric Pressure Redistribution Foam Mattress
• Manufacturer: Proactive Medical
• Dimensions: 42"W x 80" x 6" (81062); 42"W x 84" x 6" (81063); 48"W x 80" x 6" (81065); 48"W x 84" x 6" (81066); 54"W x 80" x 6" (81068); 54"W x 84" x 6" (81069); 60"W x 80"L x 6" (81075)
• Warranty: Core 1 Year Non-prorated; Cover 1 Year
• Weight Capacity: 600 lbs.
• Fire sleeve meets Federal Fire Code 16 CFR part 1633
• Made in the U.S.A.
• Weight Capacity: 600 lbs
• Warranty: 1 Year Limited

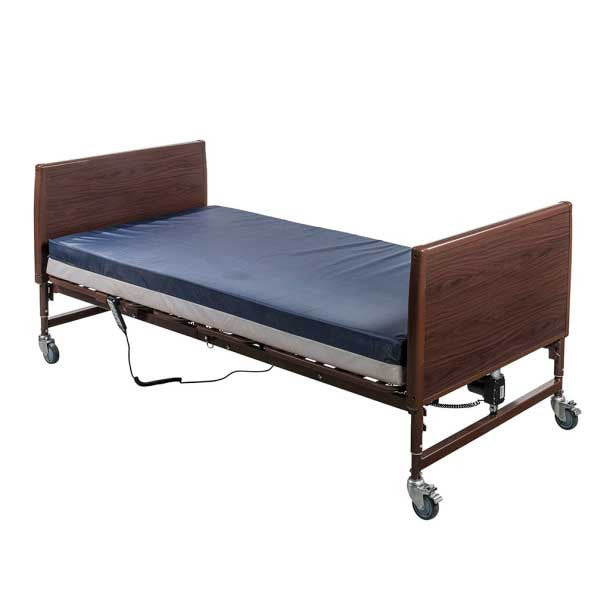

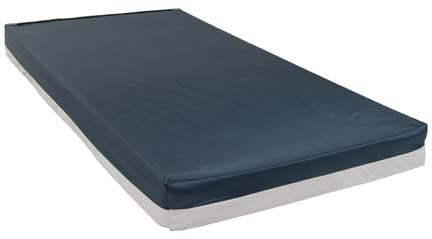

Drive Medical Bariatric Foam Mattress, 48" x 80" x 7", item# 15310

• Click to review Drive's 15310 Bariatric Foam Mattress
• Features high density foam construction
• Fluid-resistant top cover and waterproof bottom cover
• Meets Federal Fire Code CFR 16 part 1633
• Cover Material: Fluid Resistant Nylon Top, Waterproof Vinyl Bottom
• Fire Rating: CFR 16 Part 1633
• Product Height: 7"
• Product Length: 80"
• Product Width: 48" (15310)
• Color: Blue
• Material: Foam
• Weight Capacity: 600 lbs
• Warranty: 1 Year Limited

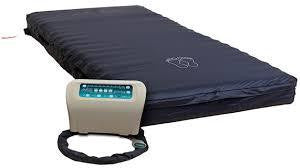

Protekt Aire 8000 Bariatric Alternating Pressure Mattress, 48" x 80" x 10", item# 80085

• Click to review the Protekt Aire 80085 Bariatric Alternating Pressure Mattress
• Includes mattress, cover and pump
• Cell-on-cell design prevents the patient from "bottoming out" in the event of a power failure
• Alternating pressure cycles of 10, 15, 20 & 25 minutes
• Seat inflate mode increases air flow by 20% to middle bladders to prevent bottoming out
• Pillow function maintains the air cells at the head for patient comfort
• Quiet, 16 LPM airflow
• Pressure Range: 20 mmHg - 70 mmHg
• Cell-on-cell mattress design
• 10" air cells are constructed of Nylon/PU
• 3 audible alarms; low pressure, power failure, and alternating failure
• Static mode allows for easy transfer in and out of bed
• Lock out feature prevents unauthorized setting changes
• CPR pull tab quickly releases air from mattress
• HCPCS Code: E0277
• Weight Capacity: 750 Lbs.
• 18 month warranty on mattress and pump

Protekt Aire 9900 Bariatric AP True Low Air Loss Mattress with Pulsation, 48" x 80" x 8", item# 81090-48

• Click to review the Protekt Aire 9900 Bariatric Alternating Pressure True Low Air Loss Mattress System with Pulsation Therapy
• State of the art micro-controller technology monitors blower speed to set pressures. Software flexibility allows customer changes (custom pressures, times, and functions)
• Blower provides 1275 LPM (liters per minute) of ample air flow
• User-friendly control panel with dome keys, LED display for simple user interface. Displays patient comfort pressure level from Soft 1 to Firm 10 (8 ± 4 to 32 ± 6 mmHg)
• True Low Air Loss to effectively reduce surface heat build-up and humidity runs continuously in tandem with other therapies
• Alternating Pressure with cycle time options of 5, 10, 15, 20, 25 & 30 minutes
• Pulsation therapy to help stimulate and promote capillary blood flow to the skin
• Power Outage Feature Cell-on-Cell mattress design prevents patient from bottoming out in case of power outage
• Static Mode for safe and easy patient transfer
• Folwer Mode automatically inflates the mattress by 50% to eliminate the risk of bottoming out when the head section is articulated (inclined) more than 20-degrees
• Lock out Key completely locks the control panel, to eliminate tampering of the patient settings, including power switch
• Audio/Visual Alarms in the event of power outage or low pressures (hose disconnect). Alarm silence key to mute alarm. Internal memory always retains current settings during power outage, will resume desired operation upon power return
• Therapeutic Support Surface consists of superior quality, urethane coated nylon air cushions to provide effective alternating pressure therapy and pulsation with true low air loss
• Low Friction and Low Shear force producing, urethane coated breathable nylon top sheet, which is liquid proof and highly vapor permeable
• CPR Rapid Deflate to quickly deflate the mattress to perform CPR during emergency situations
• Water Resistant Cover is removable and washable
• Weight Capacity: 1000 Lbs.

Optional Overbed Tables

Auto-Touch Overbed Table by Invacare, item# 6417

• Light, upward touch on handle allows table to elevate freely and securely
• Light, downward touch on table top locks the table into desired position
• Durable, welded steel base for long-lasting use
• Height adjusts from 28" to 40" for personalized preference
• Height Adjustable: 28" to 40"H
• Weight: 19 lbs.
• Base Dimensions: 15.5"W x 26"L
• Table Top Surface: 15"W x 30"L x .75"D
• Weight Limit: 25 lbs.

Deluxe Tilt Top Overbed Table by Drive, item# 13008

• Easily assembled
• Walnut, wood grain low pressure laminate top
• Top can be tilted 33 degrees in either direction
• Top can be raised or lowered in infinite settings between 26.5"-46"
• Swivel casters allow for easy maneuverability
• Chrome-plated steel "H" base provides security and stability
• Table top is locked securely when height adjustment handle is released
• Table top can be raised with the slightest upward pressure
• Height Adjustable: 29.5" to 46"H
• Weight: 21 lbs.
• Base Dimensions: 15.5"D x 26.5"W
• Table Top Surface: 15"D x 30"W
• Weight Limit: 50 lbs.
